Utility SxS

UFORCE 800 XL

ROOM FOR FOUR. READY FOR WORK.

Take people and equipment in one trip. The four-seat UFORCE 800 XL combines an 800 cc V-twin with a 300 kg tipping cargo box, selectable 4WD and hill descent control, making it a useful partner for group outings, property work and the day-to-day running of an estate.

Import duty & applicable taxes included.

Features at a glance 3-year warranty + free servicing for 2 years or 20,000 km, whichever comes first*
CFMOTO UFORCE 800 XL

COLOURS & CONFIGURATION

MAKE IT YOURS.

  • Twilight Blue
  • Desert Tan
  • TT KANATI

Choose your preferred colour. Optional accessories are listed separately.

800cc

Engine displacement

4seats

Seating

300kg

Cargo capacity

UFORCE 800 XL. AT A GLANCE.

UFORCE 800 XL with numbered component references, explained below
Official CFMOTO model image · numbered areas explained below

Choose a number to explore each feature.

01800 cc V-twin power

The liquid-cooled V-twin delivers 63.5 hp and 69.8 Nm through an automatic CVT. It brings steady working power to the four-seat utility platform without the turbocharged setup of the sport-focused Z10.

63.5 hp · 69.8 Nm · electronic fuel injection

Feature 1 of 9: 800 cc V-twin power. The liquid-cooled V-twin delivers 63.5 hp and 69.8 Nm through an automatic CVT. It brings steady working power to the four-seat utility platform without the turbocharged setup of the sport-focused Z10.

ROOM FOR FOUR. READY FOR WORK.

Take people and equipment in one trip. The four-seat UFORCE 800 XL combines an 800 cc V-twin with a 300 kg tipping cargo box, selectable 4WD and hill descent control, making it a useful partner for group outings, property work and the day-to-day running of an estate.

01

Four adult seats

Two rows give four people their own places in the vehicle. The front seats provide 108 mm of adjustment, while the rear seats and cup holders add practical space for colleagues, family or friends.

02

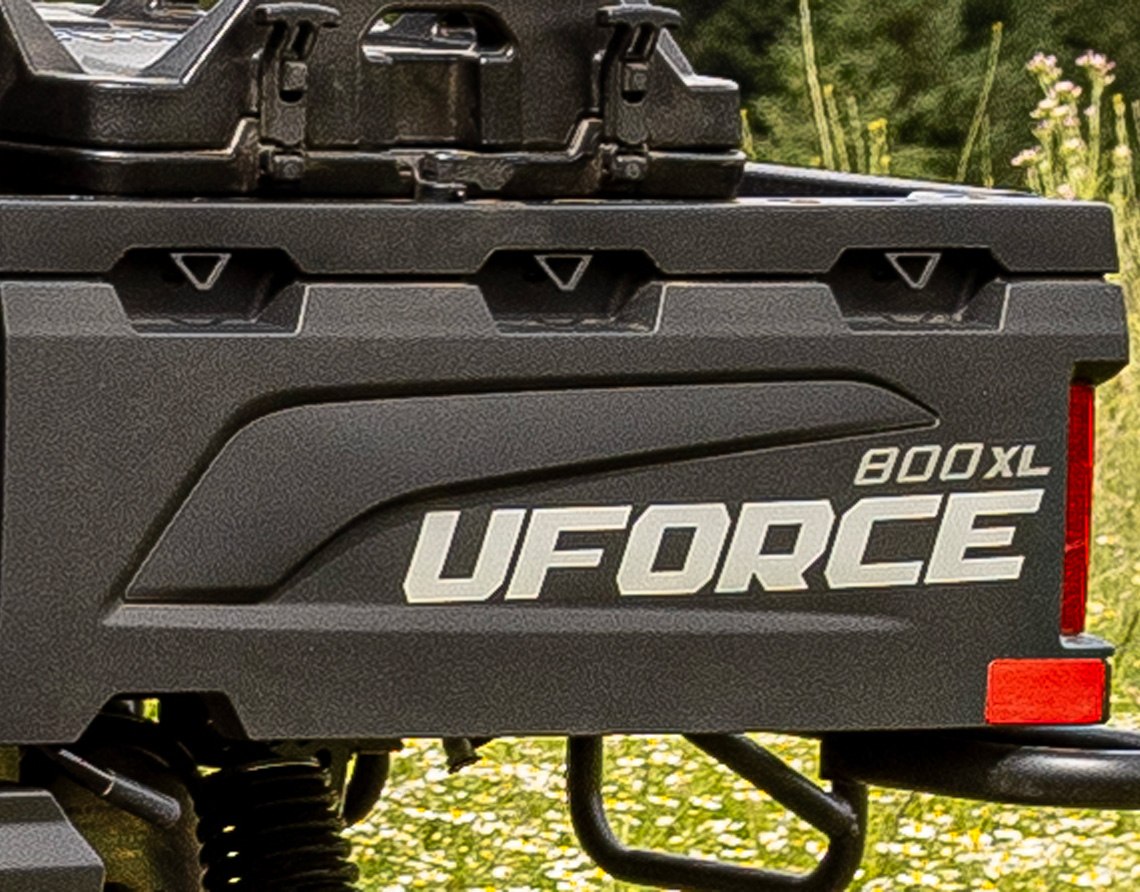

300 kg gas-assisted tipping bed

The rear cargo box carries tools and supplies up to its rated load. A nitrogen gas spring assists the tipping action, making repeated unloading easier while retaining a practical working load space.

03

Independent suspension all round

Independent A-arm suspension lets each wheel react to uneven ground, with 225 mm travel at both ends. Spring preload can be adjusted to suit the vehicle setup and load.

THE DETAILS MATTER.

Engine

Engine Type
V-twin, 4-stroke, liquid-cooled, 8 valves,SOHC
Displacement
800cc
Maximum Power
63.5hp@7000rpm
Maximum Torque
69.8N.m@5500rpm
Fuel Supply
EFI
Transmission
CVT, P-R-N-H-L
Cooling
Liquid-cooled

Dimensions & Weight

Length x Width x Height
3730 × 1525 × 2005 mm
Wheelbase
2770mm
Minimum Ground Clearance
300mm
Dry Weight
734kg
Payload Capacity
620kg
Fuel Capacity
40L
Colors
Twilight Blue/Desert Tan/TT KANATI
Rear cargo capacity
300 kg

Chassis

Drive
2WD/4WD/4WD lock
Brake
Hydraulic disc with parking brake
Shock Absorber
Front/Rear: Spring pre-load adjustable, oil damped

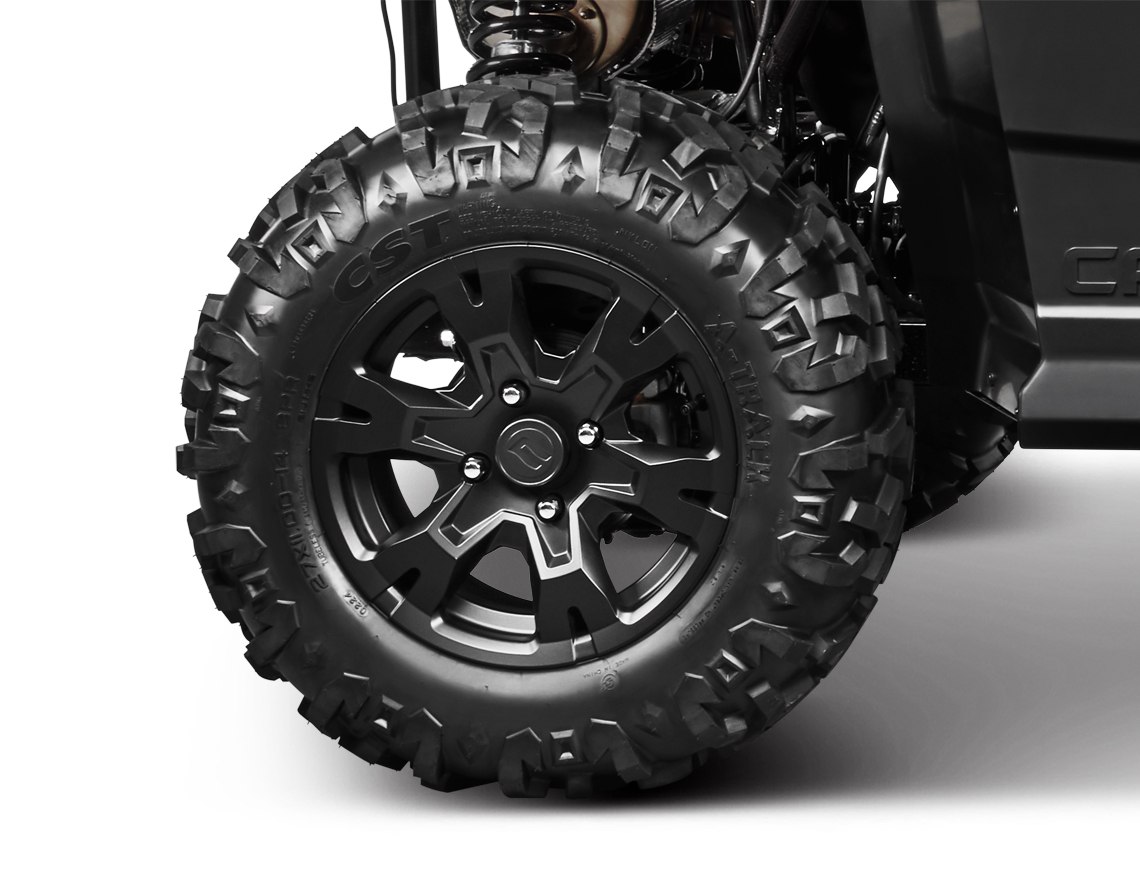

Front Tyre
27x 9.00-14
Rear Tyre
27x 11.00-14
Front suspension
High clearance A-arm independent, 225mm
Rear suspension
Double A-arm independent, 225mm
Front suspension travel
225mm
Rear suspension travel
225mm

Equipment & Connectivity

Seating
4 seats
Throttle
Ride-by-wire
Ride modes
2
Hill descent control
Included — hill descent control
Cargo box dimensions
1,300 × 870 × 275 mm
Charging ports
USB/DC outlets
Wheels
14-inch rims
Apple CarPlay
—
Cargo box lift
Nitrogen gas-spring assisted tipping
Seat adjustment
Front seat: 108 mm
Parking brake
Included
Differential lock
Front differential lock

Optional accessories are listed separately. Contact our team for availability, colour options and a quotation. Request a quote
